Articulated Boom Lifts

Equipped with lift arms that can work over heights of 13,700 mm, or approximately 44 feet, articulated boom lifts allow for increased entry to high-reaching areas.

Purchase a Boom Lift

Ideal Material Handling Equipment for Confined Work Areas

Articulating Booms can work across any obstacle. It can carry two people along with some tools in the basket. Furthermore, this machine allows you to operate it in narrow spaces with its small radius turning system. What’s more is you can operate boom lifts either from the basket or base control, so you wouldn’t need to step down from the lift when you want to move but are high up.

The multi-motion control system on this lift allows you to operate several actions simultaneously, enabling you to work more efficiently and comfortably.

Load Capacity

200 – 230 KG

Lift Height

0 – 13,700 mm

Drive Type

Lead Acid Battery

Photo of boom lift

Find the Best Boom Lift According To Your Requirements

Before choosing the best boom lift for your project, there are a few things to consider.  Fortunately, we have different knuckle booms to suit your needs.

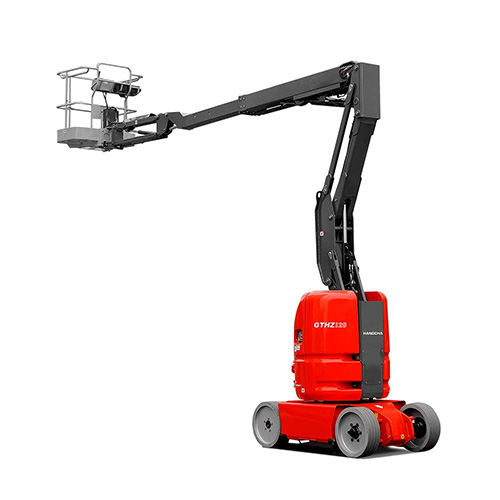

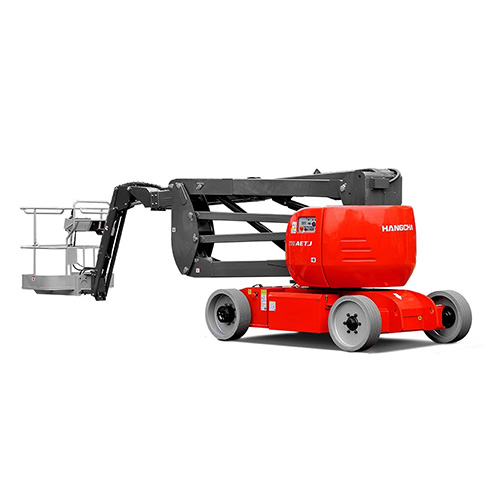

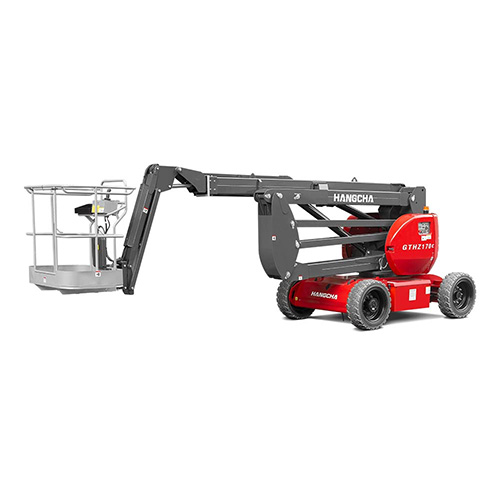

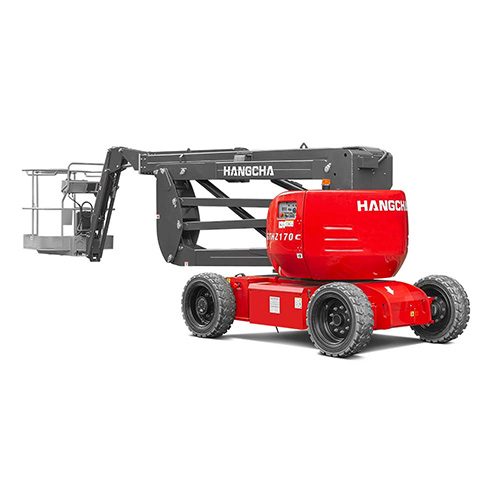

three boom lifts

Products Specifications

Model: CTH2120

Working Height: 11.95 M

Platform Height: 9.95 M

Horizontal Height: 7.00 M

UP AND Over Height: 4.77 M

Length: 5.48 M

Basket Size: 1.20X0.77 M

Turning Radius (INSIDE): 1.55 M

Turning Radius (Outside): 3.25 M

Drive Speed: 6.00 KM/H

Working Speed: 0.60 KM/H

Capacity: 200 KG

Inquire Now
three boom lifts

Products Specifications

Model: CTH2170

Working Height: 16.75 M

Platform Height: 14.75 M

Horizontal Height: 9.43 M

UP AND Over Height: 7.16 M

Length: 6.84 M

Basket Size: 1.20X0.77 M

Turning Radius (INSIDE): 2.0 M

Turning Radius (Outside): 4.30 M

Drive Speed: 4.50 KM/H

Working Speed: 0.60 KM/H

Capacity: 200 KG

Inquire Now
three boom lifts

Products Specifications

Model: CTH2170C

Working Height: 16.95 M

Platform Height: 14.95 M

Horizontal Height: 9.43 M

UP AND Over Height: 7.3 M

Length: 6.9 M

Basket Size: 1.20X0.77 M

Turning Radius (INSIDE): 2.0 M

Turning Radius (Outside): 4.30 M

Drive Speed: 6.10 KM/H

Working Speed: 0.60 KM/H

Capacity: 200 KG

Inquire Now

Applications

Boom lifts are one of the more advantageous equipment there is in the field. It enables users to be raised to the highest-reaching elevations, and be able to be moved horizontally and vertically.  This type of aerial lift is commonly used to complete indoor, outdoor, industrial, maintenance, and construction projects.

Its easy mobility and high reach capability makes it ideal for the following projects:

  • Erecting Scaffolding
  • Electrical Work
  • Fixing street lights
  • Roof work
  • Exterior Painting

Features

  • Increase the ground clearance to improve passability
  • Provided with rough terrain tires which is suitable for outside work
  • Has a driving speed of 6.1 km/h
  • Climbing speed is increased to 30% compared to prior models
  • Integrated design of motor and reducer affects the impact of braking, improving user comfort
  • Potentiometer is installed on the equipment to improve steering stability
  • Runs on AC motor

A Closer Look on Hangcha’s Boom Lift

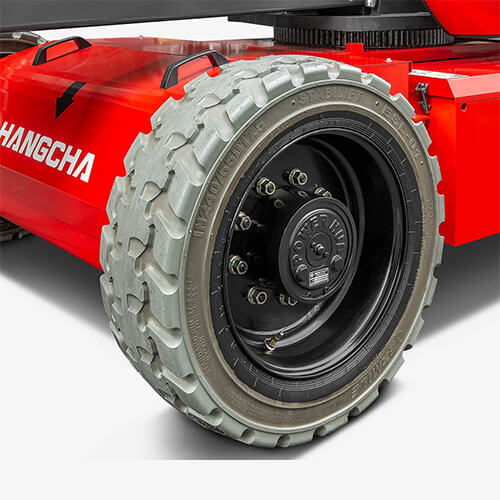

Boom Lift Tires

Tires

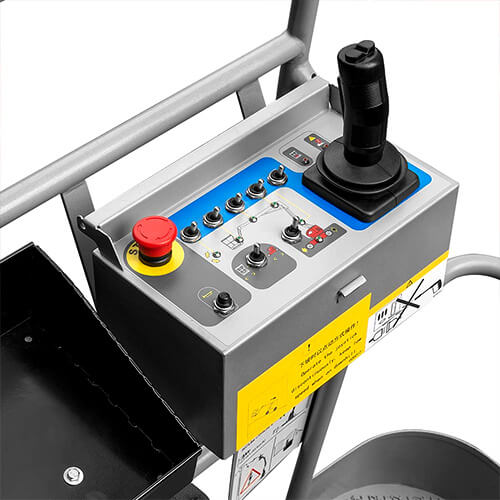

Boom Lift Basket Control Box

Basket Control Box

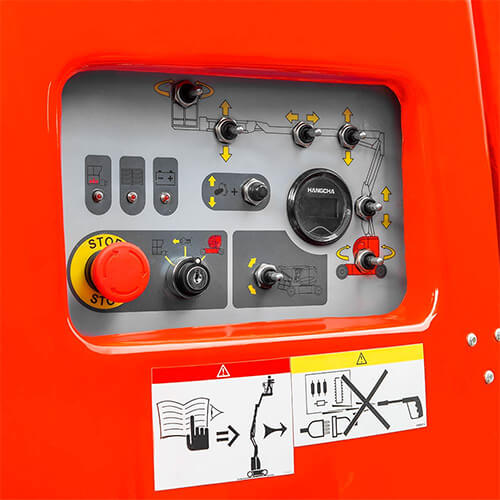

Boom Lift Base Control Box

Base Control Box

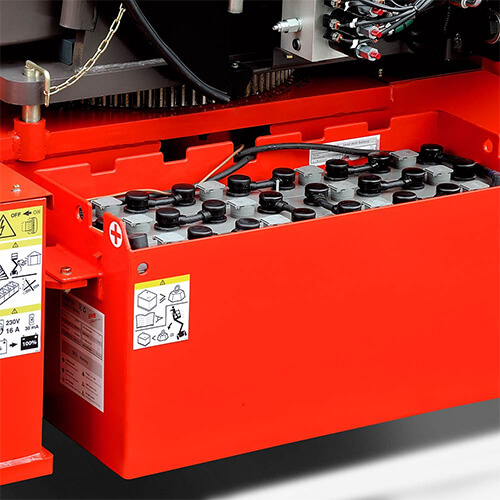

Boom Lift Tracking Battery

Tracking Battery

Product Gallery

Extensible crane-like arm, perfect for reaching high heights up to 30 feet and above.

Avail One of Our Boom Lift Units!

There are many distributors of boom lifts in the country, including Noble Philippines. We distribute top-quality boom lifts to businesses throughout the Philippines.

Noble Philippines provides high-quality services, from the moment you purchase one of our equipment down to after-sales support. Elevate the way you complete your projects and reach new heights with our boom lifts.
