3 wheel A-Series
A Series 14-18t Internal Combustion Forklift Truck
Building productivity with safety and comfort in mind. Efficient and proven energy-saving.
Overview
A series 14-18t forklift trucks are a new series of independently developed internal combustion counterweight forklifts. Products proven in the market for a long time with key parts of internationally renowned brands are mature and reliable. The vehicle features stable performance, excellent quality and cost-effective operations. The all-purpose product is suitable for use in ports, railways, steel mills, mines, shipyards and the rental market.
14,000-18,000 KG
Load Capacity
0 – 6500 mm
Lift Height
Diesel
Dirve Types
Product Features
Detail01
Detail02
Detail03
Detail04
Detail05
High Safety
The idle start protection and an optional seat sensing system are provided to improve operating safety. The fully hydraulic power braking with a large volume accumulator is adopted to allow safe and reliable braking.
Easy Maintenance
With the LCD instruments to display the relevant information of the vehicle to facilitate troubleshooting, the running status of the vehicle can be monitored and the engine failures can be displayed

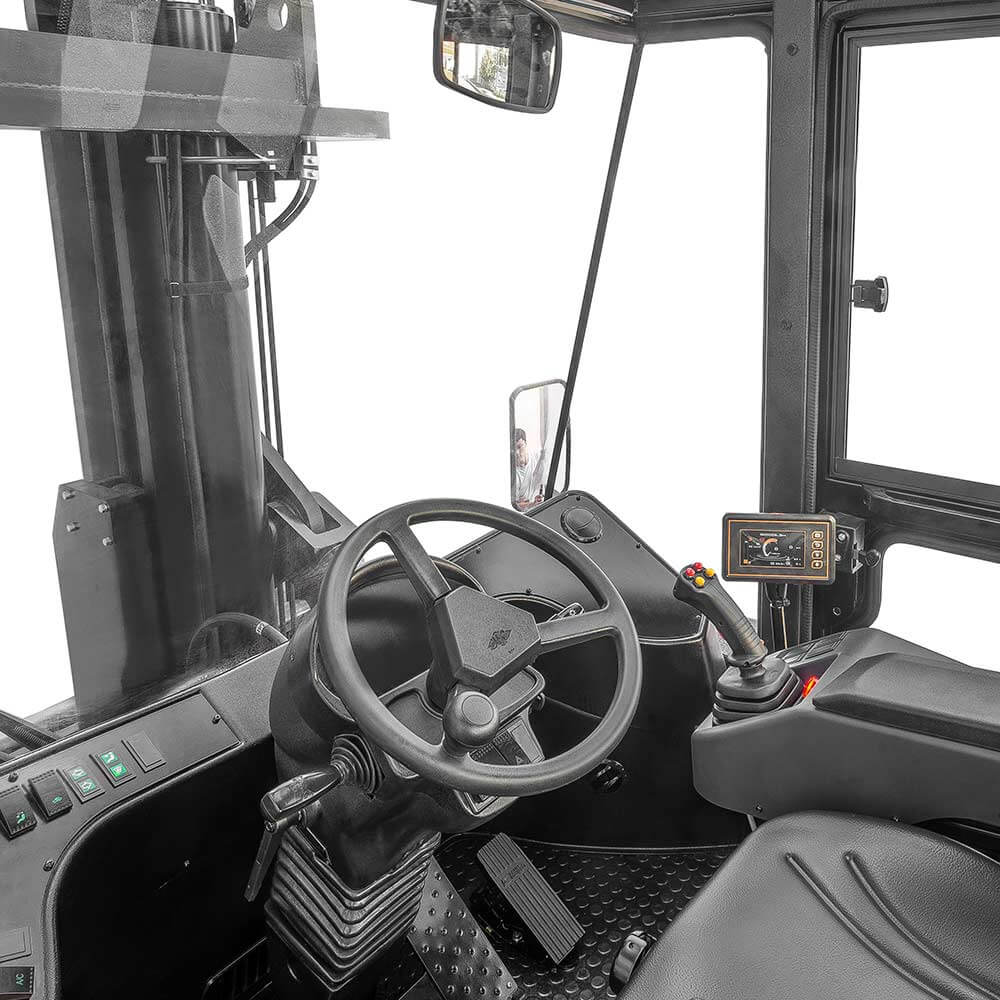

Comfort when operating
The ergonomic joystick with good hand feeling and feature integration make joint operations simple and comfortable. Adjustable steering device, hot & cold air conditioner and reading light provided in the cab as standard configuration, enable a more comfortable driving experience.
Efficient use and energy conservation
The fully hydraulic load sensing steering and dual pump merging technology improves operating efficiency, reduces system pressure loss and saves energy consumption. The vehicle is equipped with a luminous body to realize high performance, long service life and low energy consumption.
The Yuchai common rail engine has strong power and low fuel consumption
High torque at low speeds, good performance of acceleration at medium and high speeds. Bosch’s non-road special common rail system has good oil adaptability.
A special gearbox of a domestically renowed brand
Twin-turbine hydraulic torque converter enables wide speed adjustment range and high torque ratio. The gearbox integrating parking brake is simple and reliable. Well-proven in the market, highly reliable and economical.
Domestic heavy-duty caliper drive axle
The caliper brake provides fully hydraulic power braking and large braking force. The cast axle housing has a high safety factor of static load and a large bearing capacity.

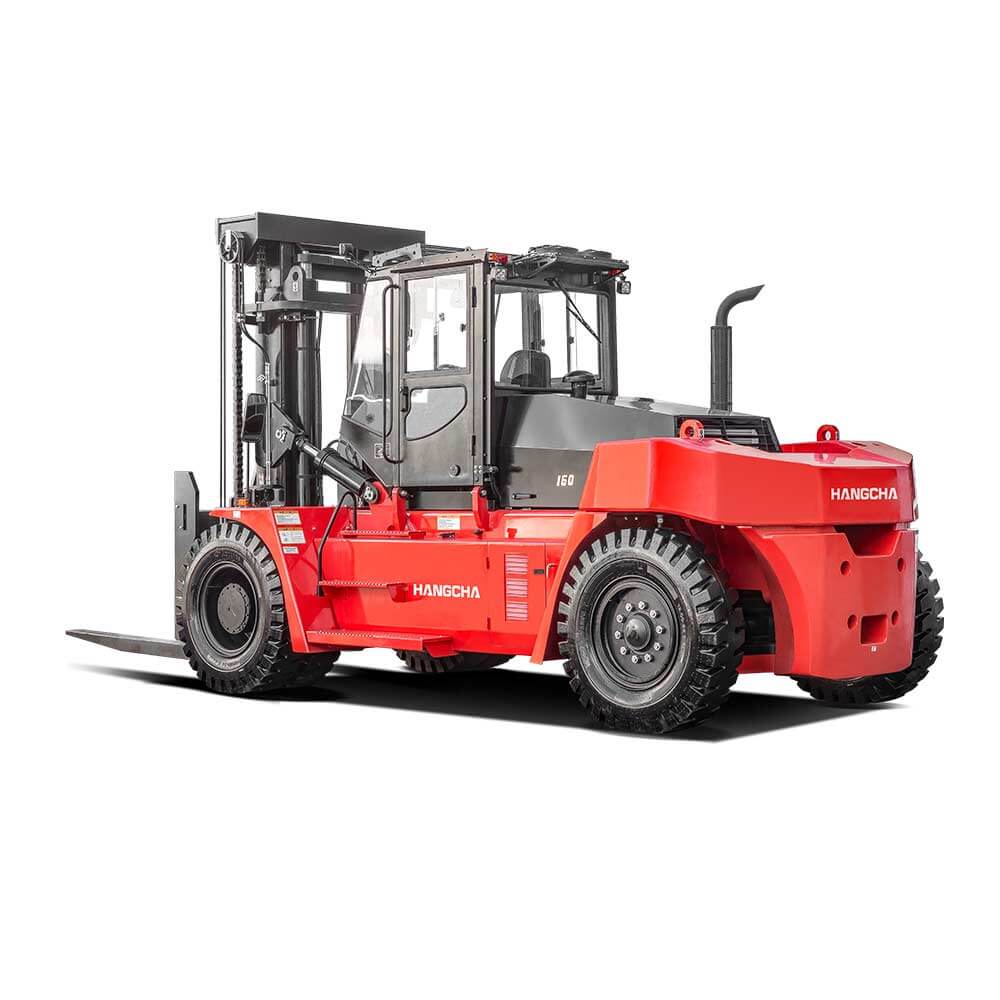

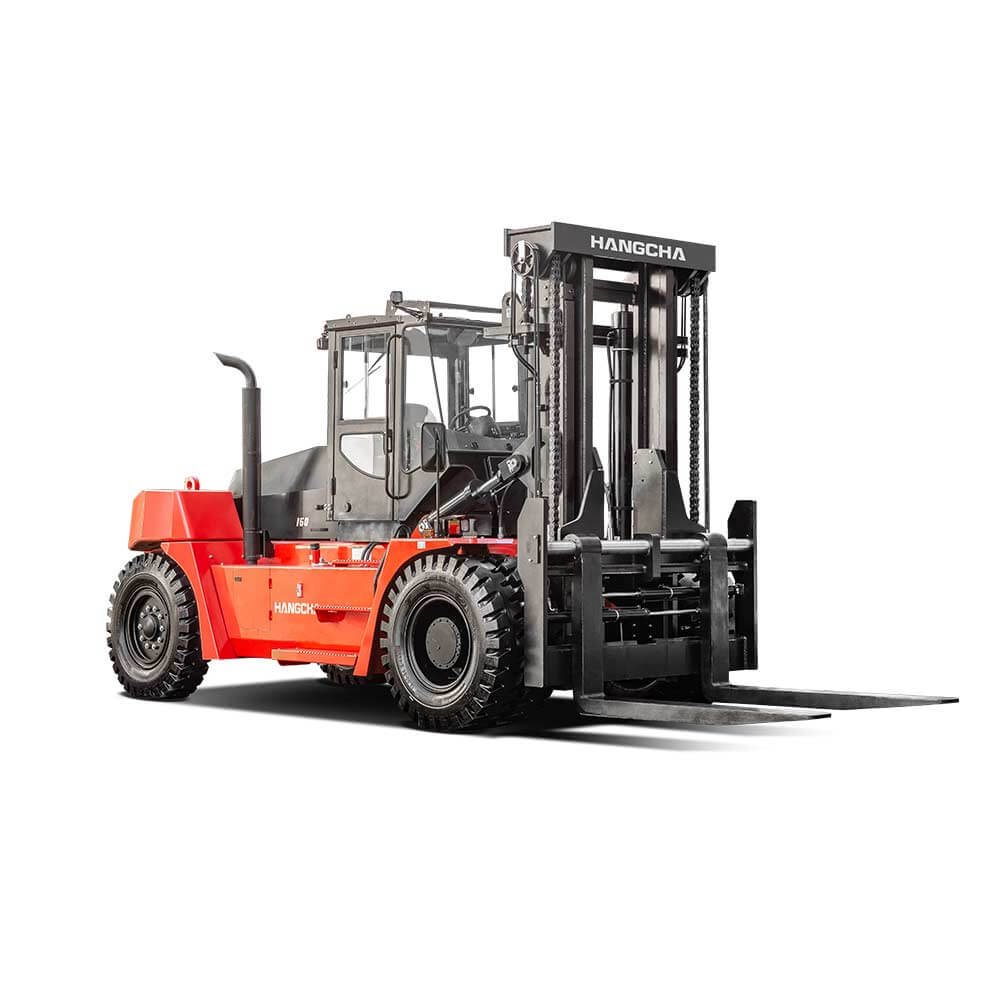

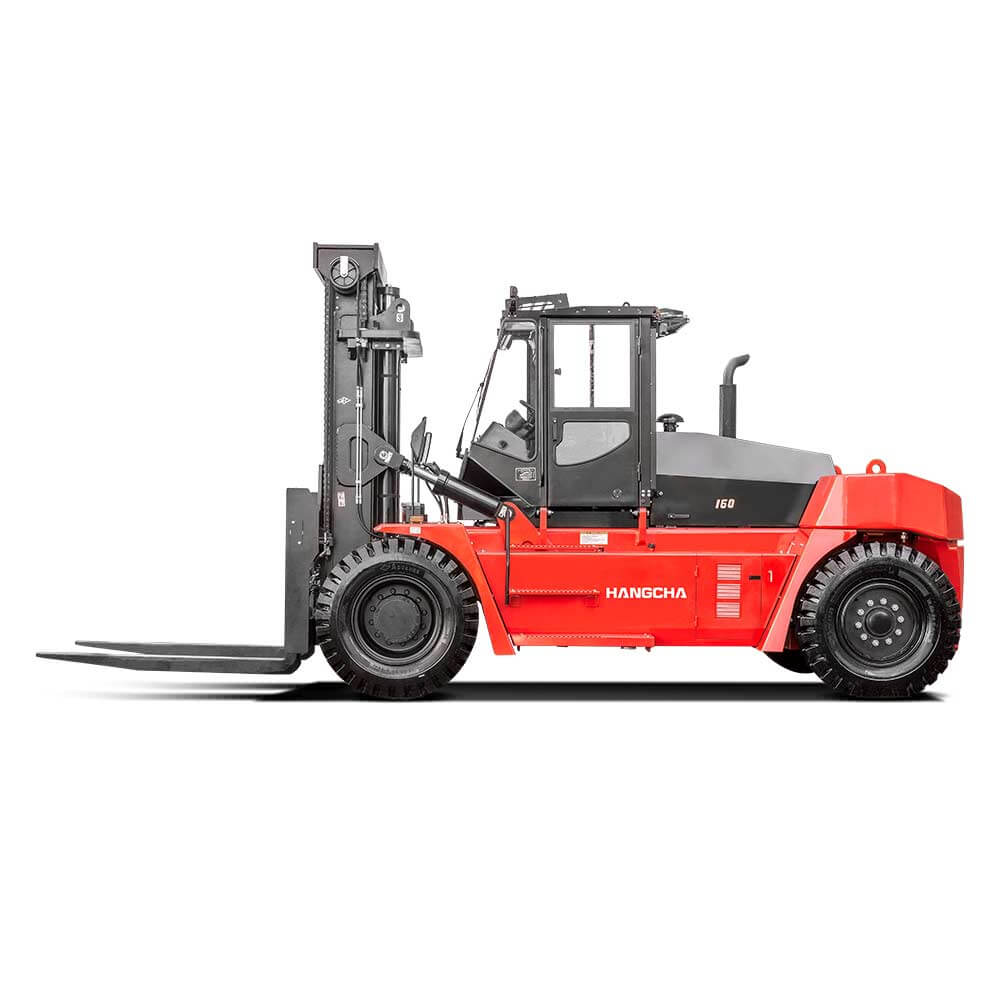

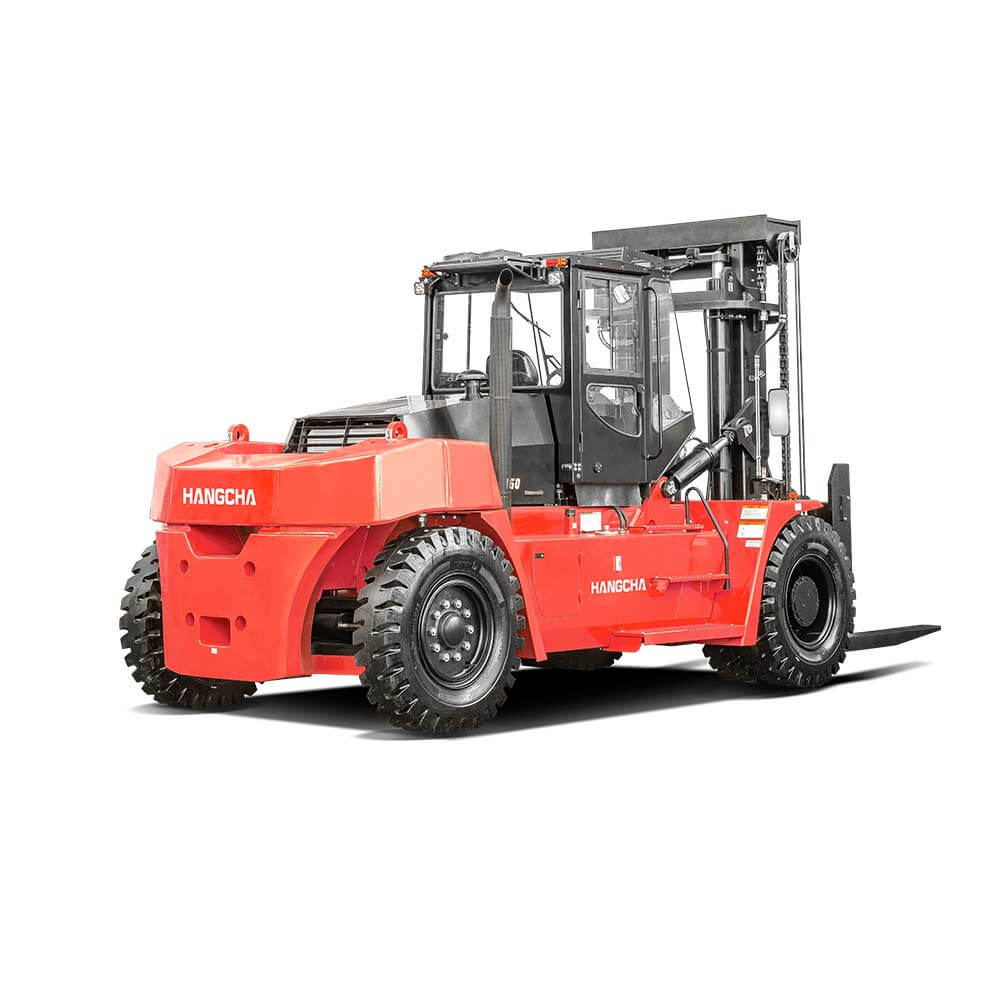

Product Gallery
