XH Series Heavy Duty High Voltage Lithium Battery Forklift 6-10t
Lithium-powered forklifts built for high performance and heavy-duty reliability with capacity of 6,000 to 10,000kg.
Overview
XH series heavy-duty high-voltage lithium battery forklifts, independently developed by Hangcha, are the result of decades of expertise in electric and internal combustion forklift technology. Featuring a new energy vehicle voltage platform, water-cooled lithium batteries, and an innovative structural design, this series breaks away from traditional concepts. With exceptional efficiency, power, and reliability, the XH series sets a new benchmark for electric forklifts, surpassing internal combustion models and redefining the future of material handling.
6,000 – 10,000 KG
Load Capacity
0 – 7000 mm
Lift Height
Li-Ion
Dirve Types
Product Features
The standard IC super-fast charging technology allows the water cooling system to work during charging and high current charging, thus only 1h is required for fully charging;
The water cooling system keeps the battery at the best working temperature of about 30°C, with high efficiency, slow decay and long life.
The large ventilation opening designed for internal combustion forklifts allows better heat dissipation of the battery and the motor.
Both the drive and operating systems are vehicle-grade permanent magnet synchronization systems. Equipped with a high speed ratio gearbox, the driving speed, lifting speed, upslope degree and acceleration performance surpass that of internal combustion vehicles.
The heat dissipation area of the air outlet is 7.5 times that of ordinary high voltage electric truck. The working temperature of the motor/electric control + battery is lower than that of ordinary high voltage electric truck by more than 10%.
Automatic battery fire extinguishing devices
Strong Adaptability
The drive axle, steering axle and tires of internal combustion forklifts can meet the demand of high-intensity operating conditions of internal combustion forklifts. It meets all-weather operating conditions and is usable under severe operating conditions such as cold storage, heavy rains and waterlogged roads.
Ultra-long battery life
With a 309V high-voltage platform and vehicle-grade permanent magnet synchronization system, the vehicle boasts of a smaller current, very low heat loss and more energy-efficient; The vehicle uses an overall controller to control the traction motor controller assembly to form a highly independent, user-friendly and intelligent drive system.
Safe and reliable
The cover of the vehicle is designed to be sealed to the water resistance level of IPX4 for the body. All the motor, electronic controls and high-voltage components reach the dust and water resistance level of IP67, a high protection level adequate to withstand harsh operating environments and ensure safety and reliability;
Convenient maintenance
The vehicle with ergonomic design, a wide view and a large operating space makes it easier for drivers to operate; The multi-functional color screen instrument is designed to have graphic interfaces; three SPE speed gears are selectable to adapt to different operating conditions; interfaces can be switched between English and Chinese to meet the demands of customers at home and abroad;

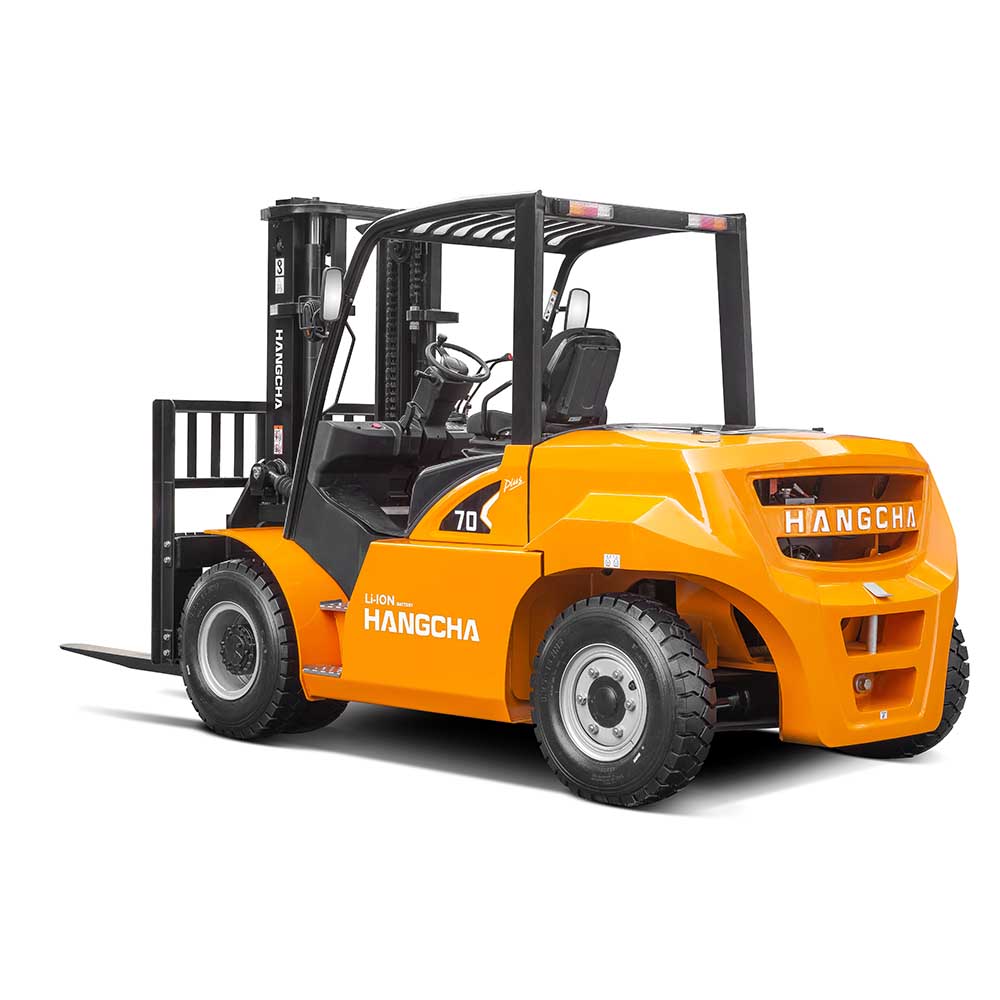

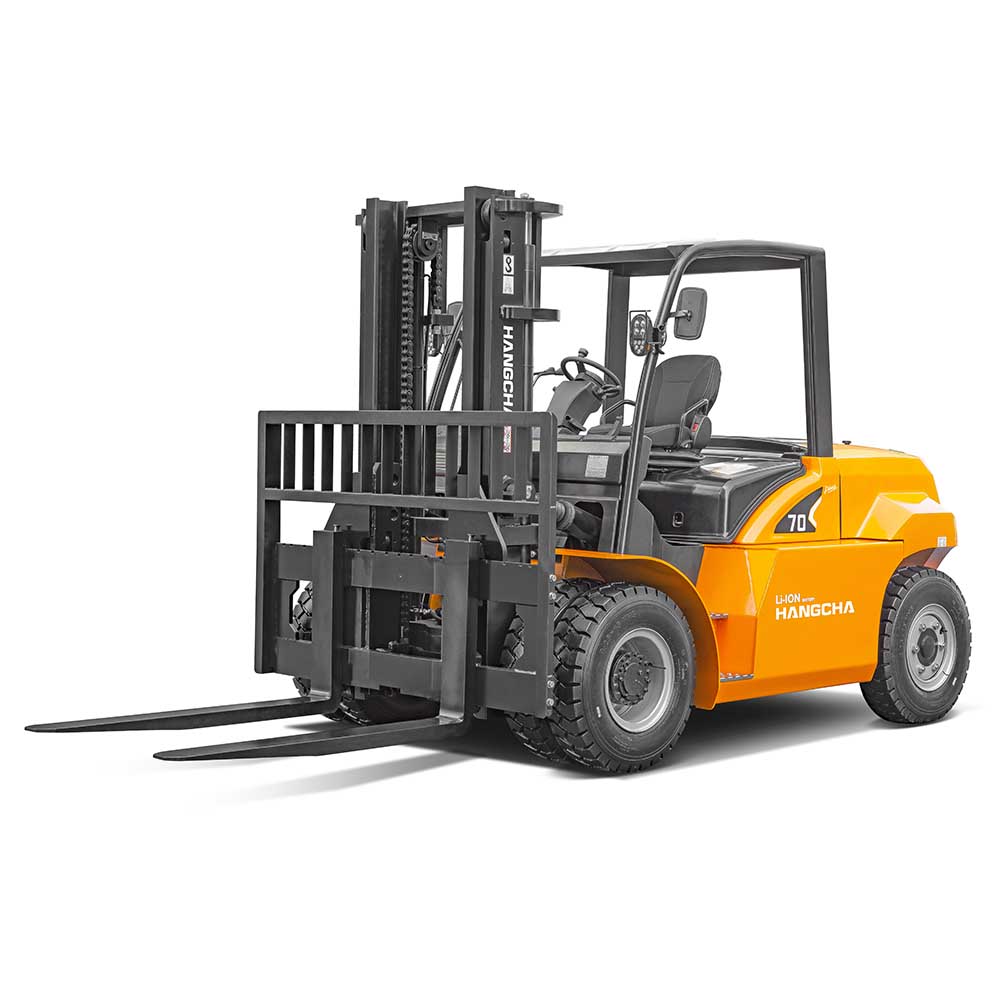

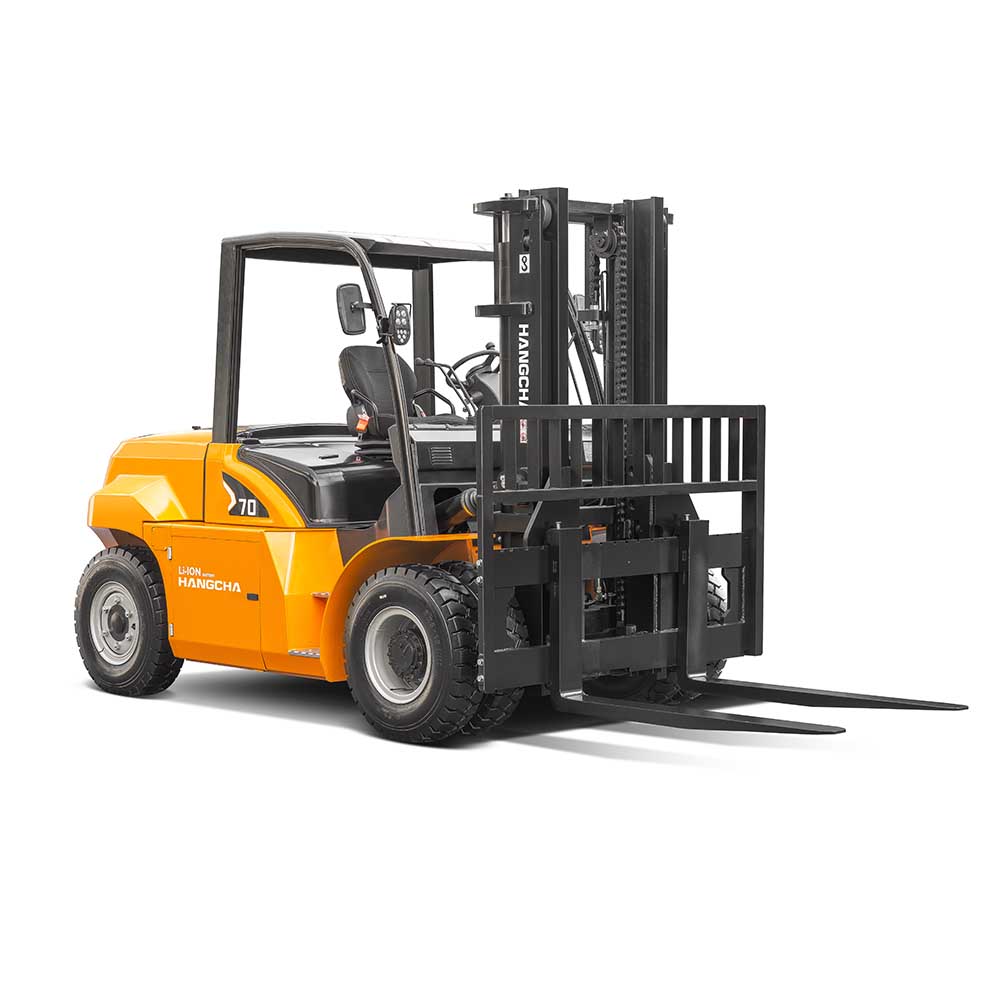

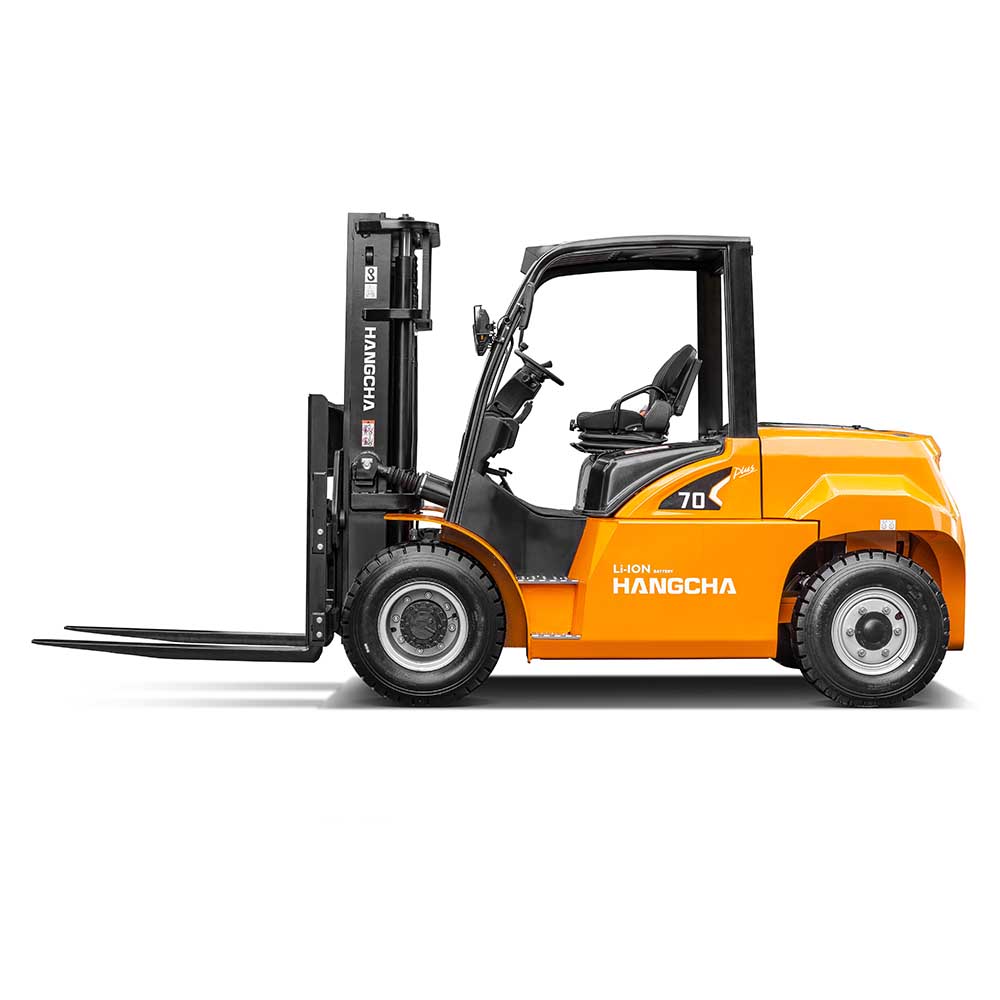

Product Gallery
