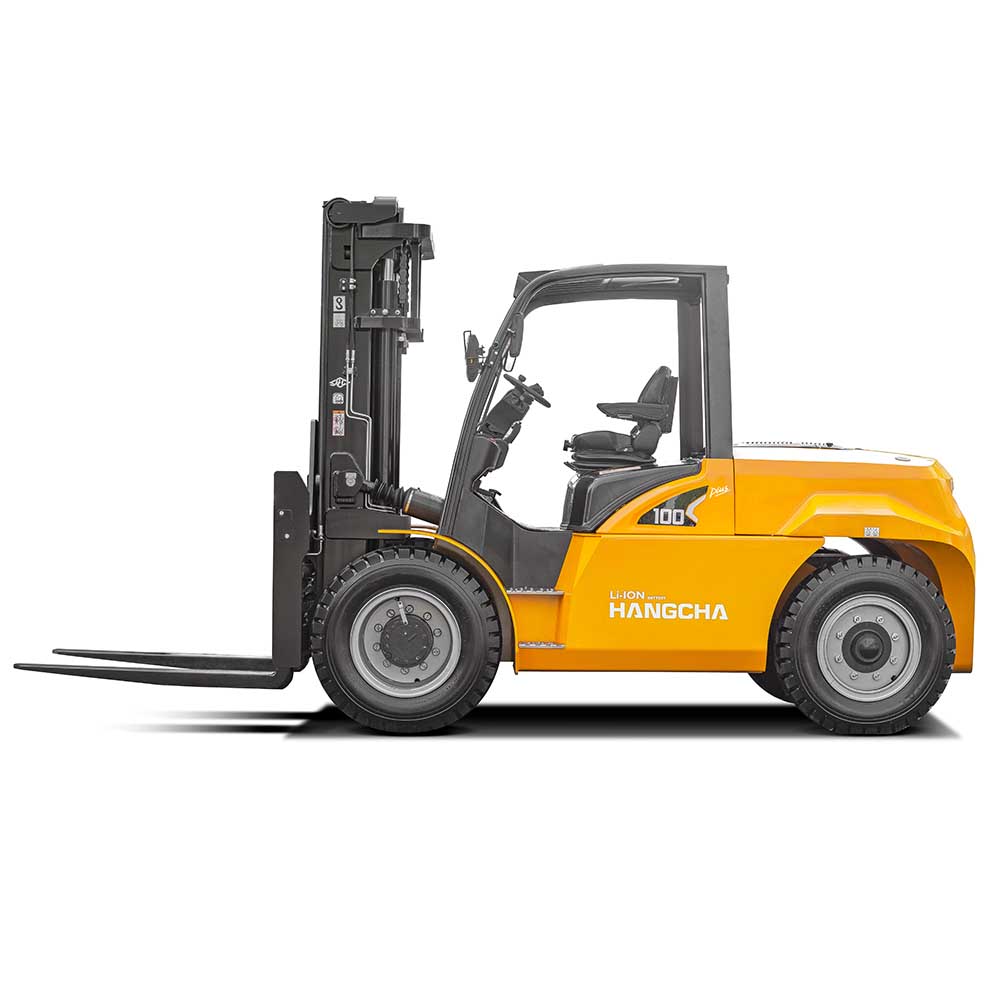

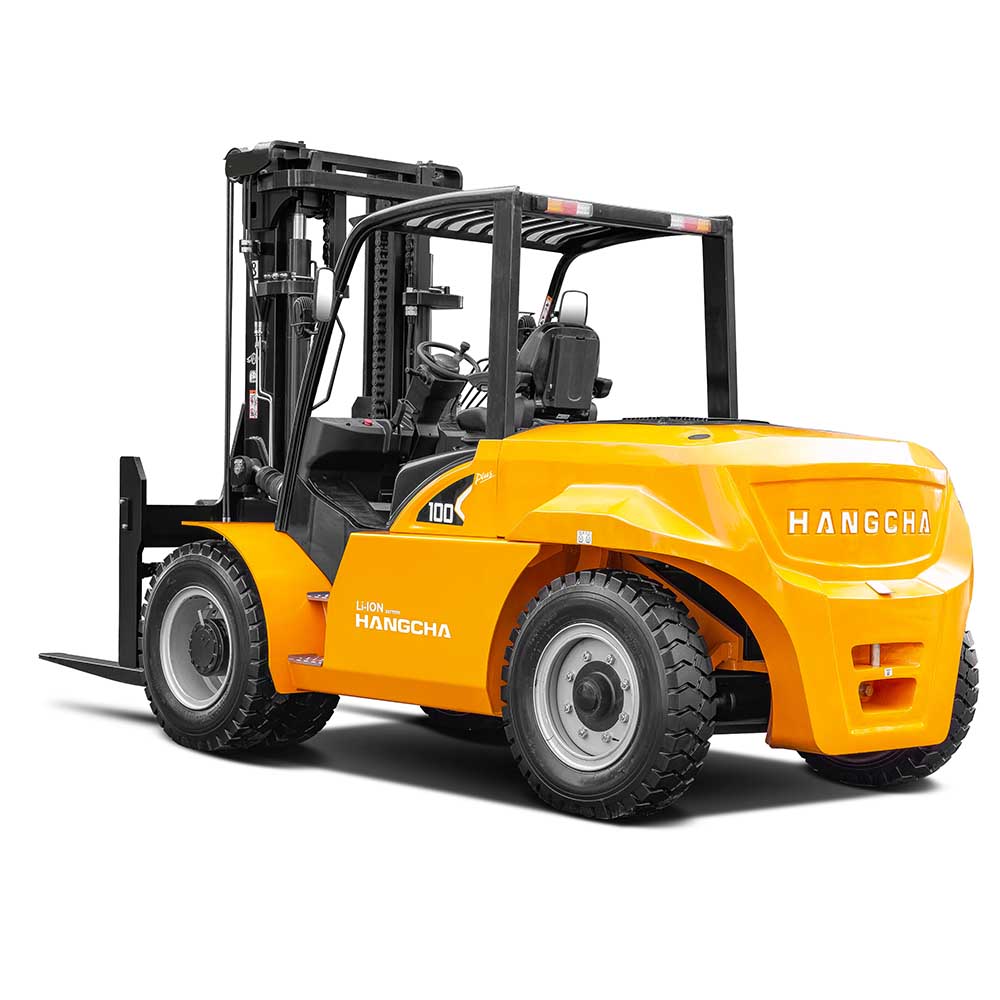

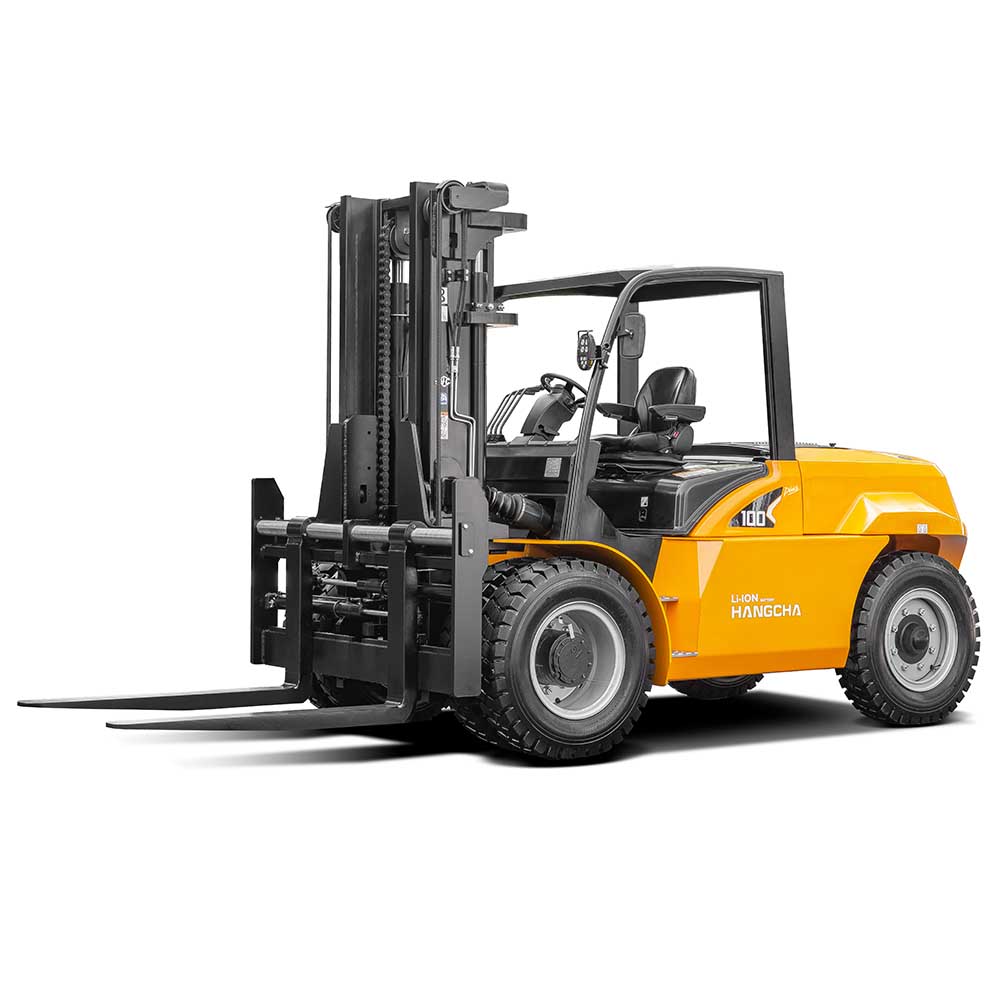

XH SERIES HIGH-VOLTAGE
LITHIUM BATTERY FORKLIFT

Lithium-powered forklifts built for high performance and heavy-duty reliability with capacity of 6,000 to 10,000kg.

Overview

XH series heavy-duty high-voltage lithium battery forklifts, independently developed by Hangcha, leverage decades of expertise in electric and internal combustion forklift technology. Featuring a new energy vehicle voltage platform and a pioneering structural design, this series marks a significant breakthrough from traditional concepts. Redefining the capabilities of electric forklifts in terms of efficiency, power, and reliability, these models are set to replace internal combustion forklifts and establish a new standard for the next generation of electric forklifts.

Kilogram icon

6,000 – 10,000 KG

Load Capacity

Height Icon

0 – 7000 mm

Lift Height

Battery Icon

Li-Ion

Dirve Types

Product Features

Standard large-capacity lithium battery

Compatible with the automobile charging pile to enable more convenient
charging;

The electrical system is equipped with highvoltage interlocks, insulation detection and vehicle-grade safety means. The MSD maintenance switch enables one-click power-down and safer maintenance.

With regard to the series of products, a water cooling system with a good heat dissipation effect is used on a new energy forklift for the first time, so that the forklift can carry out long-time and high-intensity operations as internal combustion forklifts.

The standard configuration provides a fork descending buffering function. In addition, an optional electronic control function for buffering the fork’s ascending is provided to protect the goods from falling and damaging the ground.

Ultra-long battery life

The vehicle uses an overall controller to control the traction motor controller assembly and the driving motor controller assembly to form a highly independent, light-weighted, efficient and intelligent drive system.

Both the drive and operating systems are vehicle-grade permanent magnet synchronization systems. Equipped with a high speed ratio gearbox, the driving speed, upslope degree and acceleration performance surpass that of internal combustion vehicles.

Easily maintainable

The water tank lid can be removed quickly and easily without a tool to enable a large operating area for cleaning and maintenance.

The cover of the vehicle is designed to be sealed to the water resistance level of IPX4 for the body. All the motor, electronic controls and high-voltage components reach the dust and water resistance level of IP67, a high protection level adequate to withstand harsh operating environments and ensure safety and reliability.
